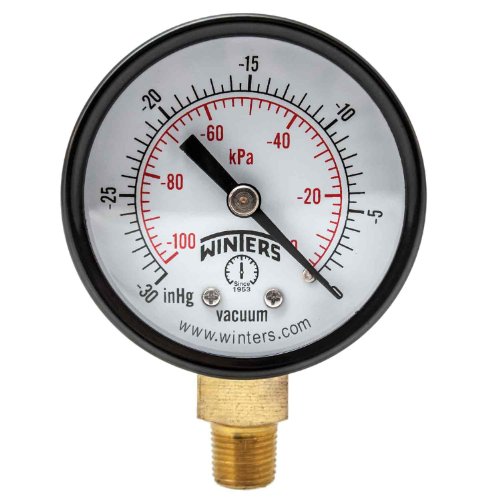

Winters 2 inch Dial Size, Economy Utility Dry Pressure Gauge, Brass Internals, Black Steel Case, Dual Scale 30 inch Hg-0 Vac/kPa, 3-2-3% Accuracy, 1/8 inch NPT Bottom Mount, Vacuum Pressure Gauge
Brand: Winters Instruments
Features:
- Most economical, all-purpose pressure gauge
- Friction bezel rings
- Black steel case
- Brass internals
- 5 Year warranty
Package Dimensions: 38x110x80
Details: Most economical, all-purpose pressure gauge. Friction bezel rings. Brass internals. CRN registered. 5 Year warranty. 2″ Dial white aluminum with black and red markings. Steel painted black case. Polycarbonate lens. Steel, painted black ring. Brass socket. 1/8″ NPT Bottom connection. Phosphor bronze bourdon tube. Brass movement. Aluminum, black pointer. Silver alloy welding. 25 percent of full scale value over-pressure Limit. Maximum 75 percent of full scale value of working pressure. Ambient/process temperature -40 degree F to 150 degree F (-40 degree C to 65 degree C). +/-3-2-3 percent ANSI/ASME Grade B accuracy. IP52 Enclosure Rating. Applications: Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM.
UPC: 628311200256
